    Product Roundup: Temp, Pressure, and Humidity Measurement

    July 18, 2012
    A look at some of the newer sensors and measurement instruments on the market, with an eye towards temperature, pressure, and humidity applications
    1660254289682 Burns Image001
    GEA Pharma Systems, partnering with NDC, has developed a new inline moisture sensor for pharma drying systems. The LHP-NDC 710e fits into a standard 2-inch port on the dryer, and extracts only the moisture content and displays it continuously for the operator to read. GEA claims the process eliminates the need for manual sampling, off-line testing, and complex chemometrics in order to measure the moisture content of a product during drying.
    resizedimage205250-GEA_Lyoplus

    Instead of testing a small (e.g., 5-10 gram) sample, the in-line systems monitors the complete batch of product. Installing the instrument requires an initial calibration exercise to compare the reading on the sensor to actual readings from lab tests, for each product to be dried.

    GEA Pharma also recently announced that a major pharma manufacturer is evaluating its Lyoplus mass spectrometer for gathering freeze-dryer data. According to GEA, the un-named manufacturer has confirmed several benefits: the ability to detect small silicone oil leaks inside the dryer; to monitor moisture content within the freeze drying chamber; and to identify the end point of primary and secondary drying. The manufacturer is currently fitting another five lyophilizers with Lyoplus.

    Burns Engineering recently introduced its Series S autoclave temperature sensors, with an operating range of -50°C to 200°C. The sensor family includes chamber and load probes, light/heavy/xtreme duty designs as well as standard or precision accuracy. Chamber wall feed-through options, including sanitary caps and multi-probe ports, are available as well.

    Burns_image001

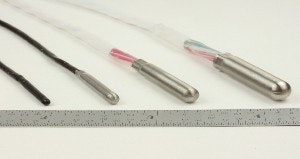

    More recently, Burns has brought the Series A miniature temperature sensors to market. The Resistance Temperature Detectors (RTDs) “fit nearly anywhere and provide maximum performance for demanding applications,” the company says, with expanded operating range of -196ºC to 200ºC. Designs include diameters of 0.080-inch to 0.250-inch with sensitive lengths of 0.36-inch or less, as well as 3- and 4-wire configurations and stainless steel or PFA Teflon sheaths.Vaisala has introduced a wall-mounted HMW90 Series HUMICAP Humidity and Temperature Transmitters, which measure relative humidity and temperature in indoor environments where high accuracy, stability, and reliable operation are required. The transmitters are quick and easy to install, calibrate, and adjust, the company says. They also include a display and a sliding cover with either a display opening or a solid front. Output options include both special scalings and calculated dew point and mixing ratio parameters.
    Vaisala_main

    This winter, the Process Analytics division of Mettler Toledo introduced a total organic carbon (TOC) sensor, the 5000TOCi, with its Intelligent Sensor Management (ISM)—a company initiative to build self-diagnostic features into its devices. The 5000TOCi can be used for applications such as WFI, reverse osmosis membranes, resin bed performance, organics shedding, and quality of final rinse water.

    The product is a reliable, sophisticated, and intuitive measurement system by combining a proven and dependable TOC analysis platform with advanced user interface and Intelligent System Management sensor diagnostics,” says product manager Steven Carelli. Combined with Thornton’s M800 multi-parameter transmitter, it integrates on-line TOC measurement with up to four sensors--up to two or four sensors for conductivity, pH, ORP, dissolved ozone or dissolved oxygen, in addition to two pulsed flow sensors. Among the benefits, says Mettler, is that the 5000TOCi “drastically reduces record keeping for the release of water through simplified data collection with innovative Peak and Average TOC measurements.”

    Mettler_5000TOCI-M800
    Control Company’s Traceable humidity/temperature/dew-frost point meter uses a fuzzy logic algorithm to provide “super-fast, under-10-seconds response time and takes samples 1.5 times per second.” A “fuzzy logic algorithm” produces results quickly, and out-of-range alarming is standard.  The meter fulfills federal CLIA requirements, and is suitable for cleanrooms, process control, drug manufacturing, and air monitoring. The Traceable follows NIST standards for traceability.

    Finally, blister packaging solutions provider Bilcare Research has launched BilcareOptima, what it calls “the pharmaceutical industry‘s most scientifically thorough method to determine ideal packaging solutions for oral dose products.” The product is a forced drug degradation analysis that determines a product’s susceptibility to humidity, temperature and light and other environmental factors, in order to recommend a packaging solution before the product is ever packaged. The company says it uses a proprietary battery of “all-encompassing tests” to do the analysis.
